EMP Car: Why Battery Disconnect Fails to Protect Your ECU

Have you ever wondered if the simple act of disconnecting your car battery could save it from an EMP? It’s a common piece of advice in preparedness circles.

An Electromagnetic Pulse (EMP) is a massive burst of energy that can fry sensitive electronics. The core problem is that modern vehicles are rolling computers, and protecting them is a serious challenge. You need to know if this popular, low-cost trick actually works.

No, disconnecting the car battery alone will not protect your vehicle from a high-altitude EMP (HEMP) event. This guide will explain the science behind why this common myth fails. You will learn the real vulnerabilities and the effective steps to harden your vehicle.

Key Facts

• EMP Threat Spectrum: A high-altitude EMP has three components, E1, E2, and E3, with the fast, high-frequency E1 pulse being the primary threat to vehicle electronics.
• The Antenna Effect: A car’s extensive wiring harness, measuring hundreds of meters in total, acts as a highly efficient antenna that collects the E1 pulse’s energy, based on engineering analysis.
• Primary Failure Point: The Engine Control Unit (ECU) is the most vulnerable component in modern cars, as its sensitive solid-state microprocessors can be destroyed by EMP-induced transient voltages.
• Inherent Resilience Varies: Vehicles manufactured before the 1970s with analog systems are highly resistant, while studies show modern digital cars are extremely vulnerable to EMP effects.
• Effective Shielding is Key: True protection requires a Faraday cage that provides at least 60-80 dB of signal attenuation, a standard derived from military research on EMP hardening.

What Is The Definitive Answer: Does Disconnecting Your Car Battery Protect It From An EMP?

No, disconnecting the car battery alone will not protect your vehicle from a high-altitude EMP (HEMP) event. The primary threat component, known as E1, couples its energy directly into your vehicle’s long wiring harness through a process called electromagnetic induction. This action completely bypasses the isolated battery and is powerful enough to destroy the sensitive solid-state microprocessors inside your Engine Control Unit (ECU).

To understand this failure, it’s critical to differentiate between two types of electrical threats. A conductive surge is energy that travels through existing wires, like a power surge from the grid. Disconnecting a device from the power source is effective against this. However, an inductive threat like an EMP E1 pulse creates damaging energy within the wires themselves from an external electromagnetic field, regardless of whether they are connected to a power source. Your car’s electrical system, even when off, becomes a receiver for this energy.

Why Does The Battery Disconnect Myth Persist Among Preppers?

The myth persists because disconnecting the battery is a valid strategy against different, slower threats. The confusion lies in the different components of an EMP. The E3 pulse of a HEMP event is a slow, low-frequency surge similar to a geomagnetic storm from a solar flare. This E3 component primarily affects very long conductors, like continent-spanning power lines.

If this E3 energy were to enter a vehicle through a connected battery charger, for instance, disconnecting the battery would indeed protect the car from that specific conductive surge. Preppers correctly apply this principle but fail to account for the far more dangerous and instantaneous E1 pulse. The battery disconnect advice is a solution for the wrong problem.

What Is The Physics Of Failure: Why Does E1 Induction Bypass The Disconnected Battery?

The E1 pulse component of an EMP has an extremely fast rise time, causing the vehicle’s long wiring harness to act as a highly efficient receiving antenna. This process, called electromagnetic induction, rapidly generates damaging transient voltages throughout the entire electrical system, making the battery’s connection status irrelevant to the initial damage.

Think of it this way: electrical continuity is not required for induction to occur. The E1 pulse is a powerful, rapidly expanding wave of electromagnetic energy. According to the principles of physics, any time a conductive material (like the copper wires in your car) is exposed to a rapidly changing magnetic field, a current is induced within that conductor. The E1 pulse’s rise time is measured in nanoseconds—billionths of a second. This incredible speed is hyper-efficient at inducing thousands of volts into your car’s wiring.

The disconnected battery only removes the vehicle’s own 12V DC power source from the equation. It does nothing to change the physical reality that hundreds of meters of wire are still present and ready to absorb the EMP’s energy, instantly channeling that destructive power to the most sensitive connected components like the ECU.

How Does The Vehicle’s Wiring Harness Become An Antenna For The E1 Pulse?

The effectiveness of an antenna is directly related to its length and the wavelength of the energy it is designed to receive. The high-frequency E1 pulse has a short wavelength that is efficiently captured by the cumulative length of a modern vehicle’s wiring harness.

While you might only see a few feet of wire under the hood, the total length of conductors running to every sensor, light, and control module in a car can easily exceed several hundred meters. This extensive, interconnected network of copper is the perfect receiving antenna for the E1 frequency spectrum. The EMP induces a current simultaneously across this entire network, creating a massive surge of transient voltage that flows toward any connected electronic component, regardless of an impedance mismatch or the battery’s status.

What Component In Your Car Is The Most Vulnerable To EMP Damage?

The Engine Control Unit (ECU) is the most vulnerable component in a modern vehicle. Its sensitive solid-state microprocessors and semiconductors have extremely low voltage tolerances, making them susceptible to immediate burnout from the powerful, EMP-induced transient voltages.

Modern ECUs operate on precise, low-voltage signals, typically around 5 volts. An EMP’s E1 pulse can induce transient voltages exceeding 20,000 volts into the wiring harness. When this massive over-voltage reaches the ECU, it physically destroys the microscopic internal structures of the integrated circuits. The most common point of failure is the gate oxide layer, a delicate insulating layer inside a transistor that is only a few molecules thick. This high voltage punches through the layer, creating a permanent short circuit and rendering the microprocessor useless.

This failure cascades through the entire vehicle system. The ECU communicates with dozens of other modules and sensors through the CAN bus network. Once the central ECU is destroyed, the fuel injection system, ignition system, and countless other critical functions cease to operate, completely immobilizing the vehicle.

How Does ECU Damage Manifest Post-EMP?

The symptoms of EMP-induced ECU damage are typically catastrophic and immediate. Based on real-world electrical system knowledge, you can expect one of the following scenarios:

• Cranks but No Start: The starter motor (a simple, robust component) may still turn the engine over, but because the ECU is dead, there will be no spark from the ignition system and no fuel from the injectors.
• Total Power Failure: The damage could be so severe that it shorts out other parts of the electrical system, resulting in no power to any component, including dashboard lights.
• Widespread Diagnostic Codes: In the unlikely event the ECU is only partially damaged, it will likely throw dozens of persistent error codes across every system that cannot be cleared, indicating a complete failure of the central processing unit.

The physical damage is microscopic and internal to the microprocessors. You will not see melted wires or burn marks on the harness itself; the destructive energy is too fast to generate that kind of heat.

How Can You Implement Effective EMP Shielding Using Faraday Principles?

Effective EMP shielding requires enclosing the entire vehicle or its critical components in a highly conductive, electrically continuous container, such as a metal shed or sealed shipping container, and properly connecting the enclosure to earth ground for maximum signal attenuation. This is the only proven method to block the electromagnetic field itself.

A Faraday cage works by intercepting the electromagnetic energy and conducting it around the outside of the enclosure, preventing it from reaching the contents inside. For this to work, three rules are non-negotiable:

1. High Conductivity: The material must be highly conductive. Steel, aluminum, and copper are excellent choices.
2. Electrical Continuity: The enclosure must be fully sealed with no gaps. Any seams, doors, or vents must be bonded with conductive materials (like copper mesh or conductive tape) to prevent energy from leaking in. According to military standards like MIL-STD-188-125, even small gaps can compromise the shield’s integrity.
3. Proper Grounding: The cage must be connected to a low-impedance earth ground via a thick cable and a grounding rod driven into moist soil. This provides a path for the collected energy to safely dissipate into the earth.

For DIY solutions, a welded-seam steel shipping container or an all-metal garage with its door seams sealed with conductive stripping can provide effective protection, aiming for an attenuation factor of 60-80 dB.

What Materials And Methods Are Best For Shielding Critical Spare ECUs?

For smaller, critical components like a spare ECU, fuses, and sensors, a layered shielding approach is highly effective and practical.

1. Place the spare ECU inside an anti-static bag to protect it from static discharge.
2. Wrap the bagged component in a layer of conductive material, such as heavy-duty aluminum foil or copper mesh.
3. Place this bundle inside a tightly sealed, conductive steel container, like a military surplus ammo can. The rubber gasket on an ammo can helps with environmental sealing, but you must ensure the lid makes direct metal-to-metal contact with the can’s body for electrical continuity.
4. For maximum protection, place that ammo can inside a larger, second grounded metal container, creating a double-shielded enclosure.

How Do Transient Voltage Suppressors (TVS) Complement EMP Shielding?

Transient Voltage Suppressor (TVS) diodes complement EMP shielding by being installed on the low-voltage input lines of sensitive components like the ECU; they quickly shunt residual high-voltage energy to ground, preventing it from reaching and destroying internal microprocessors. They act as a last line of defense.

While a Faraday cage is the primary shield, some residual energy may still penetrate it. TVS diodes are specialized semiconductors designed to react to over-voltage events in nanoseconds. This incredible speed is what makes them effective against the E1 pulse, unlike standard Metal Oxide Varistors (MOVs) or common surge protectors, which are far too slow.

When a TVS diode detects a voltage spike above its “clamping voltage,” it instantly creates a low-resistance path, diverting the harmful current safely to ground. This protects the delicate circuitry it’s connected to. For vehicle hardening, TVS diodes should be installed directly on the power and data lines leading into the ECU and other critical control modules.

Expert Recommended

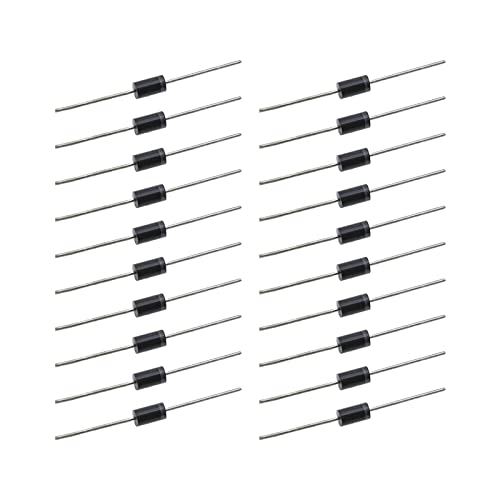

SING F LTD 20pcs Rectifier Diode SR5100 5A 100V Solar Panel Diode Low Reverse Leakage High Efficiency for Automotive Electric Wifeless Audio Television

$8.59

Check Latest Price

How Important Is Proper Grounding For Overall EMP Resilience?

Grounding is a critical supporting element, but its role is often misunderstood. Grounding is essential for making a Faraday shield effective and for safely dissipating energy from surge suppressors. It is not, by itself, a primary protection method for an entire vehicle.

The goal of grounding is to connect your shield or vehicle chassis to the earth, which acts as a massive electrical sink at zero potential. This allows the immense energy collected by the shield to flow harmlessly into the ground. A proper ground requires a low-impedance connection—a thick copper cable connected to a long grounding rod driven deep into moist soil.

A common and dangerous mistake is improper grounding, which can create a “ground loop.” This can inadvertently create new pathways for current to flow, potentially increasing the damage to your electronics. Grounding is secondary to shielding; a perfect ground does nothing if the EMP field is not blocked first.

Which Vehicle Models Are Inherently More EMP-Resilient (Analog vs. Digital)?

Vehicles manufactured before 1970, particularly those with purely analog ignition systems and minimal solid-state electronics (such as older carbureted gasoline or mechanically-governed diesel engines), possess the highest inherent resilience to the EMP E1 pulse. The resilience of a vehicle is inversely proportional to its reliance on microprocessors.

• Analog Systems (Pre-1970s): These vehicles use robust mechanical and simple electrical components (points, condensers, relays) that are far less susceptible to induced voltages.
• Early Electronics (1970s-1980s): The introduction of early electronic ignition and fuel injection modules created new vulnerabilities.
• Modern Digital Systems (Post-1990s): The widespread adoption of complex ECUs, CAN bus networks, and countless sensors makes these vehicles extremely vulnerable.
• Electric Vehicles (EVs): This emerging class represents a critical high-risk category. Their reliance on massive, complex solid-state inverters, battery management systems, and high-voltage controllers introduces numerous new and highly sensitive failure points.

The following table provides a clear risk assessment based on vehicle age and system type.

Vehicle Vulnerability Risk Matrix: Age, System, and EMP Resilience

What Is The Essential Checklist For Pre-Event Preparation And Post-EMP Recovery?

A post-EMP recovery protocol should include testing essential fuses and sensors for continuity before installing a pre-shielded spare Engine Control Unit (ECU). This prevents the new component from failing due to existing short circuits in the system. Effective preparedness requires a two-phase approach: hardening your assets before an event and having a clear plan to recover them after.

An often-overlooked expert insight is the danger of secondary damage. If a sensor was shorted out by the EMP, connecting your pristine, shielded spare ECU to that faulty circuit could destroy the new ECU instantly. A methodical testing sequence is therefore not just recommended; it is essential for a successful recovery. This checklist provides a framework for both phases.

The Pre-Event Vehicle Hardening Checklist (Current as of December 2025)

1. Acquire and Shield Spares: Purchase a spare ECU, critical fuses, and key sensors (like the crank position sensor). Store them in a multi-layered, grounded Faraday container.
2. Prepare a Shielding Enclosure: Identify or construct a Faraday cage for your vehicle (e.g., a metal shed). Verify its electrical continuity across all seams with a multimeter.
3. Establish a Grounding Point: Install a permanent, low-impedance grounding rod and cable at your vehicle’s storage location.
4. Practice Deployment: If using temporary shielding, practice moving the vehicle into the enclosure and sealing it quickly. Time your efforts.
5. Install Surge Suppression: For advanced protection, have a qualified technician install TVS diodes on the critical input lines to your vehicle’s primary ECU.
6. Maintain Fuel and Battery: Store stabilized, non-ethanol fuel and keep a battery tender on the vehicle’s battery to ensure it’s ready.

What Is The Safe Procedure For Post-EMP Vehicle Diagnostics And Repair?

If your vehicle was unshielded and fails to start after a suspected EMP event, follow this strict sequence to avoid destroying your spare parts:

1. Visual Inspection: Check for any obvious signs of damage, though this is unlikely.
2. Test All Fuses: Use a multimeter to check the continuity of every fuse related to the engine, ignition, and fuel systems. Replace any that are blown.
3. Check Key Sensors: If you have the tools, test the resistance of critical sensors like the crankshaft and camshaft position sensors to ensure they are within specification. A shorted sensor is a common failure point.
4. Install the Spare ECU: Only after confirming the integrity of the related fuses and sensors, carefully disconnect the old ECU and install your shielded spare.
5. Attempt to Start: Connect the battery and attempt to start the vehicle. If it starts, allow it to run and monitor for any unusual behavior. If it doesn’t, there may be further damage to other control modules.

FAQs About will an emp affect a car if battery is disconnected

Will An EMP Affect A Car That Is Running Or Parked?

An EMP will affect a car whether it is running or parked, though a running vehicle might be slightly more vulnerable due to the active electrical flow and microprocessors. The damage is caused by the external electromagnetic field inducing current in the wiring, a process independent of the battery’s operational status or the ignition position. If the car is running, the damage often results in immediate stalling and permanent electronic failure.

Does Simple Aluminum Foil Provide Enough Shielding Attenuation?

Simple aluminum foil alone offers limited and unreliable EMP shielding because it is extremely difficult to ensure electrical continuity across all seams. While aluminum is conductive, the effectiveness of a Faraday cage relies on a fully sealed, gap-free enclosure. Multiple layers of heavy-duty foil, properly wrapped and grounded, can provide temporary protection for small components, but a solid metal container is far superior.

Are Modern Electric Vehicles (EVs) More Vulnerable To EMP?

Yes, modern Electric Vehicles (EVs) present a significantly higher risk profile due to their extensive reliance on complex high-voltage power electronics and numerous sensitive control modules. While the large metal chassis might offer some inherent shielding, the massive battery management systems, inverters, and drive controllers introduce more points of critical solid-state failure when exposed to the E1 pulse.

How Can I Verify The Shielding Effectiveness Of My Garage Or Shed?

You can verify the electrical continuity of a metal enclosure by using a multimeter set to measure resistance (Ohms). Effective shielding requires near-zero resistance (less than 1 Ohm) across all seams, doors, and access points. Any structural breaks or non-conductive gaps exceeding a few centimeters must be sealed with conductive material like metal mesh, conductive caulk, or copper tape.

Can A Standard Home Surge Protector Be Used For My Vehicle Against EMP?

No, standard residential surge protectors cannot be used for EMP protection because they are designed for slow, low-frequency AC surges, lacking the necessary nanosecond response time. The E1 pulse is extremely fast and requires specialized components, such as high-speed Transient Voltage Suppressor (TVS) diodes, which are specifically rated to clamp the rapid, high-voltage peaks characteristic of a nuclear EMP event.

Final Thoughts on Achieving True EMP Car Resilience

True resilience against an EMP is not about finding a single, simple trick. It’s about understanding the science of the threat and implementing a layered defense. Relying on myths like simply disconnecting the battery provides a false sense of security that could leave you stranded when mobility is most critical.

The path forward is clear:

• Acknowledge the Real Threat: The primary danger is the E1 pulse and its inductive coupling effect on your vehicle’s wiring.
• Prioritize Shielding: A properly constructed and grounded Faraday cage is the single most effective countermeasure.
• Prepare for Recovery: Shielded spare parts, especially a spare ECU, are your insurance policy for getting back on the road.

By moving from confusion to decisive, science-backed action, you can significantly increase the odds that your vehicle will remain a reliable asset. This guide provides the foundational security principles, but for advanced hardening, always consider consulting with professionals who specialize in engineering and electromagnetic defense. Your preparation today is the key to your mobility tomorrow.
