Diameter of 6 Gauge Car Battery Cable: Exact Specs

Staring at a spool of wire or a pre-made battery cable labeled “6 gauge” and wondering exactly how thick that is? You’re not alone. Navigating the world of automotive wiring, especially American Wire Gauge (AWG) standards, can feel like decoding a secret language. Choosing the wrong size cable isn’t just inconvenient; it can lead to poor electrical performance, overheating, or even damage to your vehicle’s components. Many car owners struggle to determine if 6 gauge is sufficient for their battery connections or what the physical dimensions actually mean.

A typical 6 gauge (AWG) car battery cable features a bare copper conductor diameter of approximately 0.162 inches (4.11 mm). When factoring in the standard automotive insulation (like Type SGT), the overall outside diameter commonly measures around 0.310 inches (7.87 mm), though this can vary slightly by manufacturer and insulation type.

Understanding these specifications is crucial for ensuring you select the right cable for safe and efficient power delivery in your vehicle’s 12V system. This guide will demystify 6 gauge battery cables, providing clear explanations of their diameter, ampacity, common uses, and how to determine if they’re the right fit for your specific automotive needs. We’ll break down the technical jargon, compare different cable types, and answer your most pressing questions, empowering you to make informed decisions about your car’s electrical connections.

Key Facts:
* Bare Conductor Diameter: A standard 6 AWG bare copper conductor measures approximately 0.162 inches (4.11 mm) in diameter.
* Typical Insulated Diameter: Including common PVC insulation (Type SGT), the overall outside diameter of a 6 gauge automotive cable is typically around 0.310 inches (7.87 mm).
* AWG Standard: The American Wire Gauge (AWG) system means a smaller gauge number indicates a thicker wire (e.g., 6 gauge is thicker than 8 gauge).
* Ampacity: 6 gauge automotive wire generally handles up to 55 amps for power transmission in chassis wiring, though this varies with length and temperature.
* Common Uses: Frequently used for battery grounds, connections to fuse blocks, power/ground runs for moderate accessories, and sometimes starter connections on smaller engines.

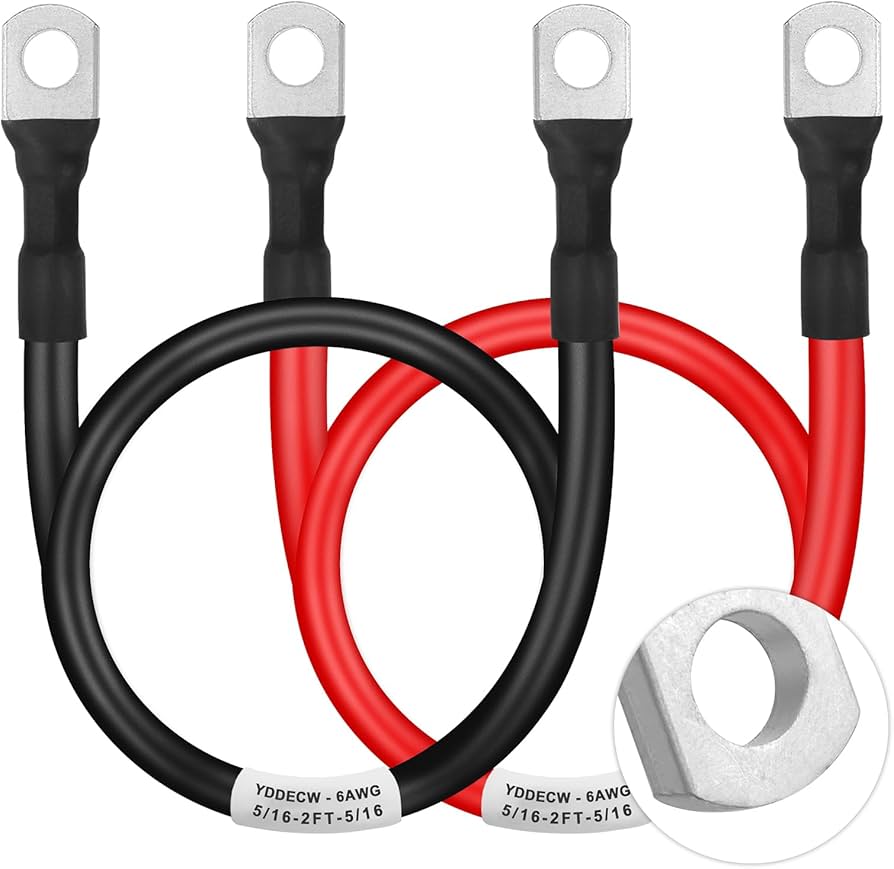

What Exactly is a 6 Gauge Car Battery Cable?

A 6 gauge car battery cable is an electrical wire specifically sized according to the American Wire Gauge (AWG) standard, primarily designed for use in automotive electrical systems. It represents a specific thickness commonly employed for medium-duty power transfer tasks within a vehicle, typically connecting the battery to components like the starter motor (on smaller engines), the alternator, grounding points, or fuse blocks in a standard 12V system. These cables are constructed with stranded copper conductors for flexibility and efficient current flow, covered by durable insulation (often PVC-based, like Type SGT) to protect against abrasion, chemicals, and temperature fluctuations found in engine bays.

Understanding 6 gauge requires grasping its place within the broader context of automotive wiring. It strikes a balance – thicker and more capable than smaller gauge wires (like 8 or 10 AWG) used for low-power accessories, but thinner and less current-capable than larger gauge wires (like 4, 2, or 1/0 AWG) needed for heavy-duty starting circuits on larger engines or high-draw accessories like winches.

Understanding the AWG Standard for Battery Cables

The American Wire Gauge (AWG) system can seem counterintuitive at first glance. The AWG standard defines wire thickness where smaller gauge numbers correspond to thicker wires capable of carrying more electrical current, while larger gauge numbers indicate thinner wires. For instance, a 6 AWG wire is significantly thicker than a 10 AWG wire. This inverse relationship is fundamental to selecting the appropriate cable size for any electrical application, ensuring the wire can handle the required amperage without overheating or causing excessive voltage drop. Each gauge number corresponds to a specific conductor diameter and cross-sectional area, which directly influences its current-carrying capacity (ampacity).

Common Uses in Automotive Applications

6 gauge battery cable finds its niche in several common automotive scenarios:

• Battery Ground Wires: Often used for the main ground connection from the battery negative terminal to the vehicle’s chassis or engine block.
• Alternator Output Wires: Suitable for connecting alternators with moderate output ratings (check manufacturer recommendations, but often appropriate for alternators up to ~100-120 amps, as the cable handles the charge current, not necessarily the peak alternator output).
• Starter Motor Cables (Smaller Engines): Can be used for the positive cable running from the battery to the starter solenoid on some smaller 4-cylinder engines or garden tractors where current demands are lower.
• Powering Fuse Blocks/Distribution Blocks: Ideal for running power from the battery to an auxiliary fuse block that distributes power to multiple lower-amperage accessories.
• Accessory Power: Suitable for medium-draw accessories like moderate-power audio amplifiers (check amp specs!), auxiliary lighting, or other equipment requiring more current than lighter gauge wires can safely handle.
• Golf Carts & ATVs: Commonly used in the battery systems of golf carts, ATVs, and similar vehicles.

Key Takeaway: 6 gauge wire is a versatile medium-duty cable in 12V systems, suitable for grounds, moderate alternator connections, some starter applications, and powering accessory fuse blocks. Always match the wire gauge to the specific current requirements and length of the run.

What is the Diameter of a 6 Gauge Car Battery Cable?

Getting down to the exact measurements, the diameter depends on whether you’re referring to the bare conductor or the complete insulated cable. A bare 6-gauge conductor has a diameter of approximately 0.162 inches (4.11 mm). When insulated for automotive use (like Type SGT), the typical overall outside diameter increases to around 0.310 inches (7.87 mm), though this can vary slightly by manufacturer and the specific type of insulation used. It’s crucial to distinguish between these two measurements; the conductor diameter determines the current-carrying capacity, while the overall insulated diameter is important for fitting connectors, routing the cable, and selecting appropriate clamps or conduit.

Variations in the overall diameter primarily stem from differences in insulation thickness and type. While standard SGT automotive wire has a typical thickness, marine-grade cables or those with specialized jacketing might have slightly larger outside diameters due to enhanced protective layers. Always refer to the manufacturer’s specifications for the exact dimensions if precise fitting is critical.

Bare Conductor Diameter Specifications

The core specification lies in the bare conductor itself, defined by the AWG standard.

• AWG Size: 6 Gauge
• Bare Conductor Diameter (Inches): Approximately 0.162 inches
• Bare Conductor Diameter (Millimeters): Approximately 4.11 mm

This measurement refers strictly to the bundle of copper strands before any insulating material is applied. This dimension directly relates to the wire’s cross-sectional area, which is the primary factor determining its resistance and ampacity.

Typical Insulated Cable Diameter

Once the protective insulation is added, the overall size increases. For common automotive-grade 6 gauge cable (Type SGT):

• AWG Size: 6 Gauge
• Typical Outside Diameter (Inches): Approximately 0.310 inches
• Typical Outside Diameter (Millimeters): Approximately 7.87 mm

Remember, this is a typical value. Some manufacturers might produce cables that are slightly larger or smaller (e.g., 0.320″ or 0.330″ are also cited by some suppliers for certain 6 AWG cable types). Always check the specs for the specific cable you are purchasing if the exact outer dimension is critical for installation (e.g., fitting through grommets or into specific looms).

How Insulation Type Affects Overall Diameter

The type and thickness of the insulation significantly impact the final outside diameter (OD).

• Standard Automotive (SGT/SGX/SXL): These typically use PVC or XLPE (Cross-linked Polyethylene) insulation designed for automotive environments. They generally adhere closely to the typical ~0.310″ OD for 6 gauge.
• Marine Grade (UL 1426): Marine cables often feature tinned copper conductors and more robust, sometimes thicker, insulation designed to withstand moisture, oil, and UV exposure. This can result in a slightly larger OD compared to standard SGT wire. For example, some marine 6 AWG cables might have an OD closer to 0.330 inches.
• Welding Cable: While sometimes used in automotive applications for its flexibility, welding cable insulation varies widely and can result in different ODs compared to dedicated battery cables.
• Manufacturer Variations: Even within the same type (e.g., SGT), slight variations in manufacturing processes and quality control can lead to minor differences in OD between brands.

Tip: If you need to fit the cable through a specific size hole or conduit, always measure the actual cable you have or confirm the exact OD specification from the manufacturer’s datasheet, rather than relying solely on typical values.

Is 6 Gauge Wire Sufficient for My Car Battery?

Yes, in many standard automotive 12V systems, 6 gauge wire is often suitable for specific car battery connections, particularly for grounding the battery to the chassis or engine block, or for powering accessory fuse blocks. However, its sufficiency critically depends on the specific electrical load (amperage draw) and the length of the cable run. It might not be adequate for the main positive cable to the starter motor on vehicles with larger engines or high compression ratios, which demand significantly higher current during cranking.

The key factor is the wire’s ampacity – its ability to safely carry electrical current. A 6 gauge wire can handle a certain amount of amperage, but exceeding this limit or using it over excessively long distances can lead to overheating, dangerous voltage drop (insufficient power reaching the component), and potential damage or fire hazards. Therefore, while 6 gauge can be used, it’s not a universal solution for all battery connections.

Understanding Ampacity: How Much Current Can 6 Gauge Handle?

Ampacity refers to the maximum amount of electrical current a conductor can carry continuously under specific conditions without exceeding its temperature rating. A 6 gauge wire typically has an ampacity rating of around 55 amps for power transmission in applications like chassis wiring (wires run in free air or minimal bundles). It’s crucial to understand that this is a general guideline and the actual safe current capacity can be influenced by several factors:

• Cable Length: Longer cables have higher resistance, leading to more voltage drop and heat generation for the same current. Ampacity ratings often decrease for longer runs.
• Ambient Temperature: Higher surrounding temperatures reduce the cable’s ability to dissipate heat, thus lowering its effective ampacity.
• Installation Method: Cables bundled together or run inside conduit cannot dissipate heat as effectively as single cables run in open air, which derates their ampacity.
• Insulation Temperature Rating: Cables have maximum operating temperature limits (e.g., 80°C, 90°C, 105°C). Higher-rated insulation can sometimes allow for slightly higher ampacity under specific conditions, but the conductor size remains the primary limiting factor.

For short runs and moderate loads within its ~55A capacity, 6 gauge is generally safe. However, for critical high-current paths like starter motors, always consult vehicle specifications or use a wire sizing calculator that accounts for length and load.

Considerations for 12V Automotive Systems

In a typical 12V car system, different components have vastly different power requirements:

• Starter Motor: This draws the highest current, often ranging from 150 amps to over 500 amps momentarily during engine cranking, depending on engine size, temperature, and condition. This is usually too high for 6 gauge on the main positive feed for most passenger cars.
• Alternator: Charging current varies but can range from 50 amps to over 200 amps on modern vehicles. A 6 gauge wire might handle the output of smaller alternators (up to ~100-120A rating), especially for shorter runs, but larger alternators require thicker cables (e.g., 4 AWG, 2 AWG, or larger).
• Accessories: Lights, radios, fans, etc., draw much less current individually (typically < 15 amps each). 6 gauge is often overkill for individual accessories but suitable for feeding a distribution block that powers multiple circuits.
• Grounding: The main battery ground carries the return current for all circuits, including the starter. A robust ground path is critical, and 6 gauge is often sufficient for this on many standard vehicles, though larger gauge might be preferred for high-performance or heavily modified systems.

When Might You Need a Thicker Cable (e.g., 4 Gauge)?

You should definitely consider a thicker cable, such as 4 gauge (or even larger like 2 AWG or 1/0 AWG), in several situations:

• Long Cable Runs: For runs exceeding roughly 7-10 feet, especially for carrying significant current, upgrading to 4 gauge or larger minimizes voltage drop, ensuring components receive adequate power.
• High-Current Starter Motors: Most V6 and V8 engines, and many modern 4-cylinder engines, require 4 gauge or 2 gauge (or even larger) for the main positive starter cable due to high cranking amperage.
• High-Output Alternators: Alternators rated significantly above 100-120 amps typically require 4 gauge or larger wiring for the charge cable back to the battery.
• High-Draw Accessories: Powering large audio amplifiers, winches, or significant auxiliary lighting systems often necessitates 4 gauge or thicker wire to handle the sustained high current draw.
• Battery Relocation: If you relocate the battery (e.g., to the trunk), the significantly longer cable runs mandate much thicker cables (often 1/0 or 2/0 AWG) for both positive and ground connections to prevent excessive voltage drop.
• Dual Battery Systems: Connecting batteries in parallel often uses thick cables (like 1/0 or 2/0) to handle potential high current flow between them.

Key Takeaway: While 6 gauge works for grounds and moderate loads/alternators over short distances, step up to 4 gauge or larger for main starter cables (most cars), high-output alternators, long runs, or high-current accessories like winches and large amps to ensure safety and performance.

What Types and Features Do 6 Gauge Battery Cables Offer?

Beyond just the gauge size, 6 gauge battery cables come with various features and types tailored to different needs and environments. Understanding these distinctions helps in selecting the most appropriate cable. Key variations include the insulation type (standard vs. marine), the conductor material (pure copper vs. alternatives), and the cable’s flexibility, which impacts ease of installation. Choosing the right type ensures longevity, safety, and optimal electrical performance for your specific application.

Standard (SGT) vs. Marine Grade Cables

Two common types you’ll encounter are standard automotive wire (like SGT) and marine-grade wire (conforming to standards like UL 1426).

While SGT is perfectly adequate for most standard car applications, marine-grade cable offers superior corrosion resistance (especially valuable if the battery is exposed or in humid climates) and durability, albeit at a higher cost.

Importance of Copper Conductors

The conductor material is paramount for performance.

• 100% Copper: This is the preferred material. Copper offers excellent electrical conductivity (low resistance), good flexibility, and durability. It efficiently transfers power with minimal loss and heat generation.
• Copper Clad Aluminum (CCA): This is an aluminum wire coated with a thin layer of copper. Using 100% copper conductors in battery cables is crucial for optimal conductivity and durability. Copper offers lower resistance than alternatives like Copper Clad Aluminum (CCA), ensuring efficient power transfer and less heat generation, especially under heavy loads. CCA is lighter and cheaper but has significantly higher resistance than pure copper (about 60-70% of copper’s conductivity). This means a CCA cable needs to be much thicker (typically 1-2 sizes larger AWG) to carry the same current as a copper cable, and it’s more prone to corrosion and breakage at connection points. For critical battery connections, always choose 100% copper cables.

Flexibility and Installation Ease

Battery cables need to be routed through tight spaces in engine compartments. Flexibility makes this much easier.

• Stranding: Battery cables use stranded conductors (many small wires bundled together) instead of a single solid wire. More strands, particularly finer strands, result in greater flexibility.
• Insulation Type: Some insulation materials are inherently more flexible than others.
• Benefit: Highly flexible cables are easier to bend and route around obstacles without putting strain on the terminals or the cable itself. Welding cable is known for its extreme flexibility due to very fine stranding, which is why it’s sometimes used, although dedicated battery cables (SGT or Marine) are generally recommended for their specific automotive ratings.

Watch this video for a visual guide on selecting the right battery cable size:

What About Connectors and Lengths for 6 Gauge Cables?

Selecting the correct 6 gauge cable is only part of the equation; choosing the appropriate connectors (terminals or lugs) and ensuring the right cable length are equally vital for a secure and effective connection. Connectors must match both the cable gauge and the attachment point (battery post, stud, bolt), while the cable length needs to be precise enough to reach without excessive slack, which can increase resistance and clutter the engine bay. Properly terminated cables ensure minimal voltage drop and maximum current transfer.

Common Connector Types (Lugs and Terminals)

The ends of your battery cables need terminals to connect securely. For 6 gauge wire, common options include:

• Ring Terminals (Lugs): These are the most common. They feature a flat ring with a hole, designed to be placed over a threaded stud or bolt and secured with a nut.
  • Material: Usually made of copper (often tin-plated for corrosion resistance).
  • Stud Hole Size: Critical dimension. Must match the diameter of the bolt or stud it’s connecting to. Common sizes for automotive use include 1/4″, 5/16″, and 3/8″. Always measure your connection point!
  • Attachment: Must be securely crimped (using the correct crimping tool) and/or soldered to the cable end for a low-resistance, durable connection. Heat shrink tubing is highly recommended over the connection for sealing and strain relief.
• Post Terminals: These are designed to clamp directly onto the lead posts of a standard top-post or side-post automotive battery.
  • Types: Top-post (lead or plated clamps) and side-post (bolt-in style).
  • Attachment: The cable is typically inserted into a barrel on the terminal and securely crimped.

Common connectors for 6 gauge battery cables include ring terminals (lugs) with various stud hole sizes (like 5/16″ or 3/8″) for bolting onto connection points, and post terminals designed to clamp directly onto battery posts. Ensure the connector is specifically rated for 6 gauge wire.

Choosing the Right Cable Length

Getting the length right is crucial for both performance and neatness.

• Measure Carefully: Use a flexible tape measure or a piece of string to trace the exact path the cable will take between the connection points. Follow the intended routing, going around obstacles as the cable will.
• Allow Minimal Slack: Add just a small amount of extra length (perhaps an inch or two) to allow for engine movement, vibration, and to avoid putting strain on the terminals.
• Avoid Excess Length: Measure the exact path the cable will take, adding minimal slack for strain relief. Avoid excessive length, which increases resistance and voltage drop. Excess cable can also look messy and potentially get snagged or damaged.
• Pre-made vs. Custom:
  • Pre-made Cables: Available in standard lengths (e.g., 12″, 18″, 24″, 36″). Convenient if a standard length fits your need. Ensure they have the correct terminals already attached.
  • Custom Length: Buy bulk 6 gauge cable and terminals separately. Allows you to create the exact length needed but requires the proper tools (cable cutters, crimpers) for termination.

Tip: When replacing an existing cable, measure the old one carefully. If creating a new connection, always measure in the vehicle along the planned route. Double-check measurements before cutting or ordering.

FAQs About 6 Gauge Car Battery Cable Diameter and Use

Here are answers to some frequently asked questions regarding 6 gauge car battery cables:

What is the exact diameter of a 6 gauge battery cable?

The diameter depends on what you’re measuring. The bare copper conductor is approximately 0.162 inches (4.11 mm). The overall outside diameter, including typical SGT automotive insulation, is usually around 0.310 inches (7.87 mm), though this can vary slightly by manufacturer and insulation type (e.g., marine grade might be slightly thicker).

Is 6 gauge wire the same as 6 AWG?

Yes, “6 gauge” and “6 AWG” refer to the same wire size according to the American Wire Gauge standard. AWG is the more formal designation commonly used in technical specifications.

What is the diameter of 6 gauge wire in millimeters (mm)?

The bare conductor diameter is approximately 4.11 mm. The typical insulated outside diameter for automotive SGT cable is around 7.87 mm. Always confirm specific product specs if precision is needed.

Can I use 6 gauge wire for a 12V car battery connection?

Yes, 6 gauge wire is frequently used for certain 12V car battery connections, especially for battery grounds, moderate alternator outputs, and powering accessory fuse blocks. However, it may be insufficient for the main starter motor cable on many passenger cars, which often require thicker 4 AWG or 2 AWG wire due to high current draw.

What is the amp rating for 6 gauge automotive wire?

The typical ampacity (current rating) for 6 gauge automotive wire used in chassis wiring is around 55 amps. This rating can be affected by factors like cable length, ambient temperature, and whether the cable is bundled with others. Always ensure the wire’s ampacity meets or exceeds the circuit’s requirements.

What size lug or connector fits 6 gauge battery cable?

You need lugs or terminals specifically designed for 6 gauge (6 AWG) wire. For ring terminals (lugs), you also need to select the correct stud hole size (e.g., 1/4″, 5/16″, 3/8″) to match the bolt or stud you are connecting to.

Is 6 gauge copper wire better than CCA for battery cables?

Yes, absolutely. 100% copper wire offers significantly lower electrical resistance and better durability than Copper Clad Aluminum (CCA). For critical, high-current battery applications, always choose 100% copper cables for safety and performance. CCA is cheaper but less conductive and more prone to failure.

How does the diameter of 6 gauge compare to 4 gauge wire?

4 gauge wire is significantly thicker than 6 gauge wire. Remember the AWG scale is inverse: smaller numbers mean thicker wires. A 4 AWG bare conductor is about 0.204 inches (5.19 mm) in diameter, compared to 0.162 inches (4.11 mm) for 6 AWG. This larger diameter gives 4 gauge a higher ampacity (around 70-85 amps or more, depending on application).

Where can I buy 6 gauge car battery cable?

You can purchase 6 gauge battery cable (both bulk wire and pre-made cables with terminals) from automotive parts stores, electrical supply houses, marine supply stores, and various online retailers specializing in wire, cable, and automotive electrical components.

What’s the difference between SGT and marine grade 6 gauge cable?

SGT is standard automotive grade wire, typically with bare copper and PVC insulation. Marine grade (UL 1426) features tinned copper conductors for superior corrosion resistance and often has more robust insulation designed for harsh, wet environments. Marine grade is generally more durable and corrosion-resistant but also more expensive.

Summary: Key Takeaways on 6 Gauge Battery Cable Diameter

Understanding the specifics of 6 gauge battery cable is essential for safe and efficient automotive electrical work. Here’s a quick recap of the vital points:

• Bare Conductor Diameter: The core electrical component, the bare copper wire, measures approximately 0.162 inches (4.11 mm).
• Insulated Diameter: With standard automotive insulation (Type SGT), the typical overall outside diameter is around 0.310 inches (7.87 mm), but always check specific product specs as variations exist.
• AWG Standard: Remember that 6 AWG is thicker than 8 AWG but thinner than 4 AWG.
• Ampacity: Generally rated for around 55 amps in typical automotive chassis wiring use cases.
• Suitability: Often ideal for grounds, moderate alternator connections, and powering accessory fuse blocks in 12V systems. Usually not sufficient for main starter cables on most passenger car engines.
• Selection Factors: Always consider the required ampacity, cable run length, environmental conditions (choose marine grade if needed), and ensure you use 100% copper conductors for critical battery connections. Select appropriate connectors (lugs/terminals) rated for 6 AWG with the correct stud size.

By keeping these key dimensions and characteristics in mind, you can confidently select and utilize 6 gauge battery cables where appropriate, ensuring reliable power delivery for your vehicle’s electrical system.
