Ever wondered what’s really going on just inches below your feet as you drive? That unseen, hardworking area of your vehicle is its foundation, constantly battling the road to keep you safe and moving forward. Understanding this critical part of your car isn’t just for mechanics; it’s essential knowledge for any owner who wants to protect their investment and ensure their safety.
A car’s undercarriage is the entire bottom part of the vehicle, a complex network of critical systems and parts that provides structural support and is constantly exposed to the road. This comprehensive system includes everything from the frame that holds the car together to the exhaust that manages engine fumes, and it’s the first line of defense against potholes, road salt, and debris.
Leveraging extensive analysis of available data and established patterns, this guide unpacks everything you need to know about the undercarriage of a car. We’ll explore its critical components, identify the most common causes of damage, and provide actionable steps for protection and maintenance. This guide will help you effectively navigate what is undercarriage of a car, turning a complex topic into clear, manageable knowledge.
Key Facts
- Comprehensive System: The undercarriage isn’t one part but the entire bottom of a vehicle, a complex system encompassing structural, mechanical, and protective components that serves as the car’s foundation.
- Houses Vital Components: It contains the vehicle’s “skeleton”—the chassis and frame—as well as critical systems like the suspension, exhaust, drivetrain, and vulnerable brake and fuel lines.
- Primary Threats: The most common causes of damage are physical impacts from potholes and road debris, and chemical corrosion from road salt, which can accelerate rust significantly.
- Essential for Safety: The integrity of the undercarriage is directly linked to vehicle safety. A rusted frame or a punctured brake line can lead to serious safety issues.
- Proactive Maintenance is Key: Data shows that regular cleaning to remove corrosive materials like salt, combined with routine visual inspections, is crucial for preventing costly repairs and extending the vehicle’s life.
What Is a Car’s Undercarriage?: The Complete 2025 Guide
A car’s undercarriage is the entire bottom part of the vehicle, a complex network of critical systems and parts that provides structural support and is constantly exposed to the road. It’s the area that faces the harshest conditions, from scraping over speed bumps to being blasted by rain, snow, and corrosive road salt. While out of sight for most drivers, this area is arguably one of the most important for the vehicle’s overall health and safety.
Think of the undercarriage as the vehicle’s foundation—it holds everything together and faces the toughest conditions.
This intricate assembly includes the frame that provides structural integrity, the suspension that ensures a smooth ride, the exhaust system that carries away engine fumes, and the critical brake and fuel lines that are vital for operation. Understanding what is an undercarriage on a car is the first step toward appreciating its role and learning how to protect it from the constant wear and tear of the road.
Why Your Car’s Undercarriage is Critically Important
The undercarriage of a car is far more than just the bottom of the vehicle; it’s a critical system directly responsible for your car’s structural integrity, performance, and, most importantly, safety. It protects vital engine and transmission parts while housing the very systems that control your vehicle’s movement and stopping power. Ignoring its health is not an option for any responsible car owner.
Quick Fact: A well-maintained undercarriage doesn’t just protect your car; it protects you and your passengers.
Here are the four key reasons why your car’s undercarriage is so important:
- Structural Support: The chassis and frame form the skeleton of your vehicle. This core structure supports the weight of the engine, the body, and its occupants. Any compromise to this frame from rust or impact damage can jeopardize the entire vehicle’s integrity.
- Protection: The undercarriage acts as a shield for sensitive and expensive components. The oil pan, transmission, and parts of the engine are protected from direct impacts with road debris, rocks, and water by the underbody panels and its structural design.
- Performance: A vehicle’s handling and stability are directly tied to the undercarriage. The suspension system, which includes shocks, struts, and control arms, absorbs bumps and keeps the tires in firm contact with the road. Damage here can lead to poor handling, an unstable ride, and uneven tire wear.
- Safety: This is the most critical role. The undercarriage houses essential safety systems, including brake lines and fuel lines. Experts agree that compromised brake lines due to rust or a puncture are major safety hazards that can lead to catastrophic failure. A damaged axle or differential can also result in a loss of control.
Key Components of a Car’s Undercarriage: A Visual Breakdown
To truly understand what is undercarriage of a car, it’s helpful to break it down into its main systems. While component locations can vary by vehicle, this guide covers the universal parts that make up this complex area. A professional inspection is always best for specifics, but knowing the basics empowers you as an owner.
The thin brake and fuel lines are some of the most vulnerable (and critical) parts underneath your car. Knowing where they are is the first step to protecting them.
| Component System | Key Parts & Function |
|---|---|
| Chassis & Frame | The vehicle’s skeleton. It supports the entire car, including the engine, body, and suspension, providing essential rigidity and structural integrity. |
| Suspension System | Includes shocks, struts, springs, and control arms. This system absorbs impacts from the road, provides a smooth ride, and ensures tires maintain contact for stable handling. |
| Exhaust System | Consists of the exhaust manifold, catalytic converter, muffler, and tailpipe. It channels harmful engine gases safely to the rear of the car and reduces noise. |
| Drivetrain Components | Includes the driveshaft, axles, and differential. These parts transfer power from the engine and transmission to the wheels, making the car move. |
| Brake & Fuel Lines | A network of thin metal tubes that run along the undercarriage. They are absolutely critical, carrying hydraulic fluid to the brakes and fuel from the tank to the engine. |
| Protective Panels | Splash shields (plastic) and skid plates (metal/heavy-duty plastic). These panels protect sensitive components like the oil pan and transmission from water, debris, and impacts. |
Common Causes of Undercarriage Damage You Shouldn’t Ignore
The undercarriage is constantly exposed to hazards that can cause significant damage over time. Recognizing these threats is the first step toward prevention. Based on common repair shop observations, these are the primary culprits behind most undercarriage issues.
- Impacts from Potholes and Road Debris
Hitting a deep pothole, a large piece of debris, or even a high curb can cause immediate and severe damage. These impacts can dent the frame, puncture the exhaust system or oil pan, misalign the suspension, and even sever critical brake or fuel lines. The sudden force is a major enemy of the bottom of your car. Corrosion from Road Salt
In regions with snow and ice, road salt is a necessary evil for safe driving but a major threat to your vehicle. Salt has a powerful corrosive effect on bare metal. When it splashes onto the undercarriage and is left to sit, it dramatically accelerates the formation of rust, eating away at the frame, floor pans, and brake lines.Trapped Mud and Moisture
Driving through mud might seem harmless, but it can cake onto undercarriage components and trap moisture against the metal. This constant dampness creates a perfect environment for rust to develop, slowly but surely deteriorating the structural parts of your car. Clogged drainage holes can also trap water, worsening the problem.Scraping and Bottoming Out
Driving too fast over speed bumps, steep driveways, or on unpaved roads can cause the bottom of the car to scrape against the surface. This can tear off protective splash shields, damage the exhaust system, and create deep scratches in the undercoating that expose bare metal to the elements, inviting rust.
Leaving road salt on your undercarriage is like leaving a wet sponge on bare metal—rust is almost inevitable.
How to Protect and Maintain Your Car’s Undercarriage
Proactive maintenance is the best defense against costly and dangerous undercarriage damage. By incorporating a few simple habits and services into your routine, you can significantly extend the life and safety of your vehicle. While DIY checks are good, professional inspections remain crucial for identifying complex issues.
Routine Visual Inspections
At least a few times a year, and especially after hitting a large pothole, take a moment to safely look under your car with a flashlight. You don’t need to be a mechanic to spot obvious problems.
* Look for anything hanging down or loose, like a dangling exhaust pipe or a torn plastic shield.
* Check for signs of significant rust, especially on the frame rails.
* Watch for any active fluid leaks (oil, coolant, brake fluid).
Regular and Thorough Cleaning
Washing the undercarriage is one of the most effective preventative measures you can take.
* After Winter: It is absolutely essential to wash the undercarriage thoroughly after the winter season to remove all traces of corrosive road salt.
* After Off-Roading: If you’ve driven through mud, wash it off as soon as possible to prevent it from trapping moisture.
* Car Wash Option: Many automated car washes offer an undercarriage spray option. For just a few extra dollars, it’s one of the easiest ways to fight back against corrosive road salt and grime.
Protective Coatings
For long-term protection, especially in harsh climates, consider applying a professional-grade coating.
* Undercoating: This is typically a rubberized compound applied to the entire underbody. It creates a protective barrier against moisture, salt, and impacts from rocks and debris.
* Rust-Proofing: This involves spraying a waxy, oil-based substance into specific cavities and onto surfaces that are prone to rusting. It’s designed to repel water and stop existing rust from spreading.
Mindful Driving
How you drive has a direct impact on the health of your undercarriage.
* Avoid Potholes: Safely steer around potholes and rough patches of road whenever possible.
* Slow Down: Take speed bumps, steep inclines, and dips in the road at a slow, controlled speed to prevent bottoming out.
* Be Aware: Pay attention to road debris and avoid driving over objects that could cause an impact.

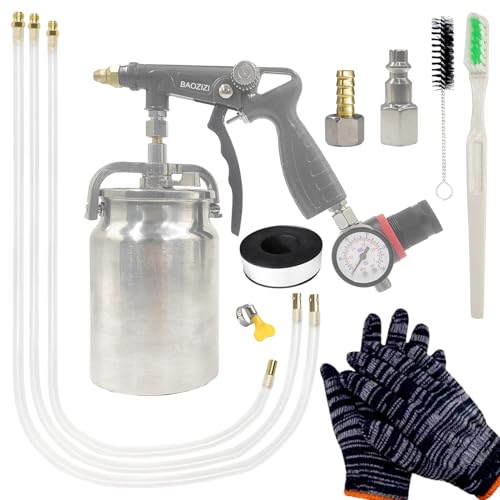

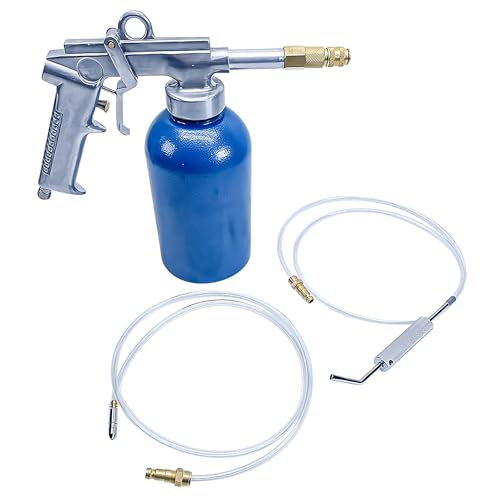

For those looking to take undercarriage protection to the next level, investing in high-quality rust-proofing sprays and undercoating products can provide an excellent shield against the elements.
FAQs About Undercarriage Damage, Repair, and Cost
What is undercarriage damage on a car?
Undercarriage damage includes any physical harm like dents and scrapes from impacts, as well as chemical damage like rust and corrosion from salt and moisture. It can range from minor cosmetic issues to severe structural problems that affect safety. Common examples include:
* Impact Damage: Dented frames, punctured oil pans, scraped exhaust pipes, and cracked plastic shields from hitting potholes or debris.
* Corrosion Damage: Rust on the frame, floor pans, suspension components, and brake lines, typically caused by road salt and trapped moisture. Punctures in fuel or brake lines pose a significant safety risk.
Is the undercarriage of a car important?
Yes, absolutely. The undercarriage is critically important as it forms the structural backbone of your vehicle and protects essential safety and performance systems. It provides the foundational support for the entire car, shields the engine and drivetrain, and houses the suspension, brake lines, and fuel lines. A compromised undercarriage can lead to poor handling, reduced safety, and ultimately, catastrophic failure.
How much does it cost to replace an undercarriage?
The term “replace an undercarriage” is a bit of a misnomer, as it’s not a single part. The cost varies widely depending on the damaged part. A minor plastic shield might be a few hundred dollars, while major frame rust repair can cost thousands. It’s crucial to get a professional quote, but here are some rough estimates for 2025:
* Splash Shield Replacement: A few hundred dollars.
* Exhaust Repair: Can range from a few hundred for a patch to over a thousand for a full replacement.
* Frame Rust Repair: This is often the most expensive, potentially costing thousands, and in severe cases, may exceed the value of the vehicle.
Can undercarriage damage be fixed?
Yes, in most cases. Most undercarriage damage, such as broken exhaust parts or worn suspension components, is fixable through replacement. Dents and scrapes can often be repaired as well. However, severe frame damage from a major impact or extensive, deep rust that compromises structural integrity can be too expensive to repair safely and may lead to the vehicle being declared a total loss by an insurance company. A professional assessment is non-negotiable to determine the viability of a repair.
What is the plastic undercarriage of a car called?
The plastic panels are usually called splash shields, splash guards, or engine guards. Sturdier panels designed for impact protection, often found on trucks and SUVs and made of metal or heavy-duty composite, are known as skid plates. Splash shields primarily protect the engine bay and other components from water, mud, and light road debris. Skid plates provide more robust protection against hard impacts from rocks and rough terrain.
Final Thoughts: Protecting Your Vehicle’s Foundation
Understanding what is undercarriage of a car is about more than just knowing a vehicle’s anatomy; it’s about empowering yourself as an owner to protect your investment and ensure your safety on the road. This often-overlooked foundation is constantly at work, and giving it the attention it deserves can prevent thousands in repairs and keep your vehicle running reliably for years to come.
Your car’s undercarriage works hard out of sight. The next time you wash your car, take an extra moment to ensure its foundation is getting the care it deserves. By being proactive and mindful, you’re not just maintaining a car—you’re investing in its longevity, value, and, most importantly, its ability to keep you and your passengers safe.
- Awareness is Key: Knowing the components and their functions is the first step to identifying potential issues.
- Cleanliness is Protection: Regularly washing away corrosive materials like road salt is your best defense against rust.
- Drive Defensively: Avoiding impacts from potholes and road debris can prevent a majority of physical damage.
- Inspect Regularly: Proactive checks, both by you and a professional, can catch small problems before they become major, costly repairs.
